CZJ Enhanced Long Range Proximity Sensor CZJ-A30M-G Enhanced Long Rang...

● Inductive proximity sensors detect metal.

●Enhanced Long Range type with 2to 3 times the detection distance of the normal type.

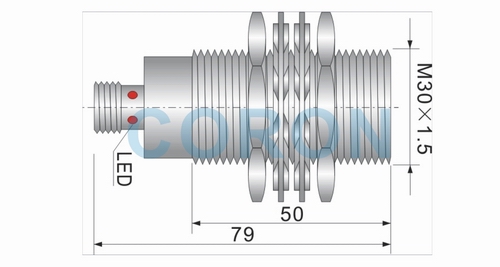

● Cylindrical M30 thread, nickel-copper alloy housing withM12 connector.

●Buried type, detection distance 16mm, 22mm.

●NPN, PNP output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.

Online Consultation

form

M30×1.5-G

M30×1.5-G

Installation form

flush-mounted

flush-mounted

Detection distance

16mm

22mm

Setting distance

0-12.8mm

0-17.6mm

NPN 3-wire

NO

CZJ-A30M-16ANA-G

CZJ-A30M-22ANA-G

NC

CZJ-A30M-16ANB-G

CZJ-A30M-22ANB-G

N+C

------

------

PNP 3-wire

NO

CZJ-A30M-16APA-G

CZJ-A30M-22APA-G

NC

CZJ-A30M-16APB-G

CZJ-A30M-22APB-G

N+C

------

------

Supply Voltage

10-30VDC

10-30VDC

Current consumption

≤15mA

≤15mA

Output Current

≤200mA

≤200mA

Output Voltage Drop

≤1.5V

≤1.5V

response frequency

≤500Hz

≤300Hz

Repeatability

<1 percent

<1 percent

Output indicator

red LED

red LED

environmental temperature

-25°C-+75°C

-25°C-+75°C

Environmental humidity

35-95%RH

35-95%RH

Shell material

Nickel-copper alloy

Nickel-copper alloy

connection method

M12 Connector

M12 Connector

protection class

IP67

IP67
