CWJ Stainless Steel Proximity Sensor CXJ-A30M Analogue Proximity S...

● Inductive proximity sensors detect metal.

● Analogue40-20mA, 0-10VDC output.

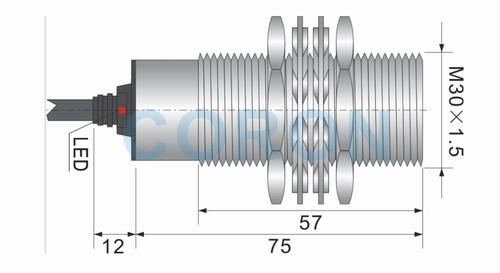

● Cylindrical M30 thread, 2 metre lead.

● Buried type, detection distance 10mm.

●Adoption of dedicated ICs toachieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used for distance measurement,thickness measurement, and selection measurement of machinery and equipment.

Online Consultation

form

M30×1.5

Installation form

flush-mounted

Detection distance

10mm

Setting distance

0-8mm

voltage output

0-10VDC

CXJ-A30M-10APLU

current output

4-20mA

CXJ-A30M-10APLI

Supply Voltage

10-30VDC

output voltage

0-10VDC

Output Current

4-20mA

load resistance

Voltage output R≥4.7KΩ, current output R≤470Ω

response frequency

≤800Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

Nickel-copper alloy

connection method

2m cable

protection class

IP67
