CWJ Stainless Steel Proximity Sensor CWJ-A30BM Stainless Steel Pro...

● Inductive proximity sensors detect metal.

● Stainless steel casing with robust andcorrosion-resistant construction.

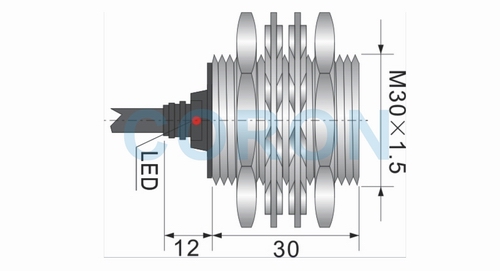

● Cylindrical M30 thread, extra short form, 2 metre leads.

● Buried type, detection distance 15mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in automotive industry, robot welding,food, chemical industry, steel and other fields.

Online Consultation

form

M30×1

Installation form

flush-mounted

Detection distance

10mm

Setting distance

0-8mm

NPN 3-wire

NO

CWJ-A30BM-10ANA

NC

CWJ-A30BM-10ANB

N+C

 ------

PNP 3-wire

NO

CWJ-A30BM-10APA

NC

CWJ-A30BM-10APB

N+C

 ------

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤200Hz

DC 2-wire

NO

CWJ-A30BM-10ALA

NC

CWJ-A30BM-10ALB

Supply Voltage

 10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5V

response frequency

≤100Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

stainless steels

connection method

2m cable

protection class

IP67
