CWJ Stainless Steel Proximity Sensor CWJ-A30 Stainless Steel Proxi...

● Inductive proximity sensors detect metal.

●Stainless steel casing with robust and corrosion-resistantconstruction.

● Cylindrical M30 thread, 2 metre lead.

● Non-buried, detection distance 15mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated ICs toachieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in machine tools, robot welding, food,chemical, steel and other fields.

Online Consultation

form

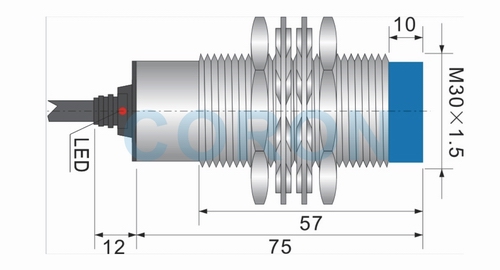

M30×1

Installation form

Unburied

Detection distance

15mm

Setting distance

0-12mm

NPN 3-wire

NO

CWJ-A30-15ANA

NC

CWJ-A30-15ANB

N+C

PNP 3-wire

NO

CWJ-A30-15APA

NC

CWLJ-A30-15APB

N+C

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤200Hz

DC 2-wire

NO

CWJ-A30-15ALA

NC

CWJ-A30-15ALB

Supply Voltage

10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5

response frequency

≤100Hz

AC 2-wire

NO

CWJ-A30-15GKA

NC

CWJ-A30-15GKB

Supply Voltage

90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤25Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

stainless steels

connection method

2m cable

protection class

IP67
