CSJ Waterproof Proximity Sensor CSJ-E55 Waterproof Proximity ...

● Inductive proximity sensors detect metal.

● Fully sealed plastic enclosure with protection classIP68.

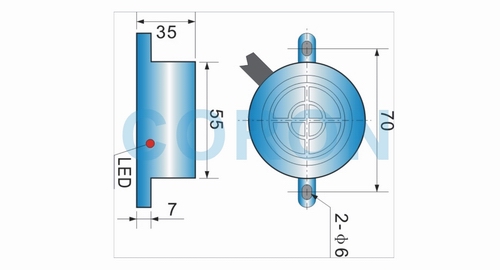

Flat mountingshape φ55mm, 2m lead.

● Non-buried, detection distance 25mm.

●NPN, PNP, DC 2-wire, AC 2-wire output.

●Adoption of dedicated IC to achieve excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

●Widely usedin metallurgy, glass, ceramics, machinery and other high temperatureenvironment.

Online Consultation

form

E55

Installation form

Unburied

Detection distance

25mm

Setting distance

0-20mm

NPN 3-wire/4-wire

NO

CSJ-E55-25ANA

NC

CSJ-E55-25ANB

N+C

CSJ-E55-25ANC

PNP 3-wire/4-wire

NO

CSJ-E55-25APA

NC

CSJ-E55-25APB

N+C

CSJ-E55-25APC

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤80Hz

DC 2-wire

NO

CSJ-E55-25ALA

NC

CSJ-E55-25ALB

Supply Voltage

 10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5V

response frequency

≤40Hz

AC 2-wire

NO

CSJ-E55-25GKA

NC

CSJ-E55-25GKB

Supply Voltage

 90-250VAC

Current consumption

≤2mA

Output Current

≤300mA

Output Voltage Drop

≤8V

response frequency

≤15Hz

AC/DC 2-wire

NO

CSJ-E55-25HMA

NC

CSJ-E55-25HMB

Supply Voltage

20-250VAC/DC

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

ABS engineering plastics

connection method

2m cable

protection class

IP68
