CQJ All-metal Proximity Sensor CQJ-A30-G All-metal Proximity...

● Inductive proximity sensors detect metal.

● All stainless steel design, robust structure, thedetection head is resistant to mechanical impact and corrosion.

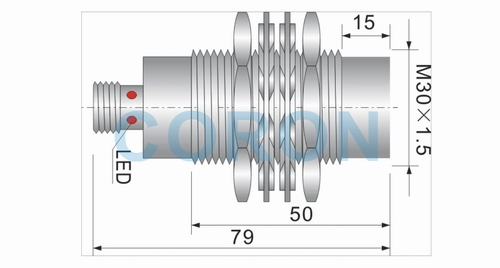

● Cylindrical M30 thread with M12 connector.

● Non-buried, detection distance 15mm.

●NPN, PNP, DC two-wire output.

●Adoption of dedicated IC to achieveexcellent anti-interference performance.

● Red LED indicator to show the working status of thesensor

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Positioning, limiting, counting, detecting, etc. forautomation equipment.

● Widely used in automotive industry, robot welding,food, chemical industry, steel and other fields.

Online Consultation

form

M30×1-G

Installation form

Unburied

Detection distance

15mm

Setting distance

0-12mm

NPN 3-wire

NO

CQ-A30-15ANA-G

NC

CQJ-A30-15ANB-G

N+C

------

PNP 3-wire

NO

CQJ-A30-15APA-G

NC

CQJ-A30-15APB-G

N+C

------

Supply Voltage

10-30VDC

Current consumption

≤15mA

Output Current

≤200mA

Output Voltage Drop

≤1.5V

response frequency

≤150Hz

DC 2-wire

NO

CQJ-A30-15ALA-G

NC

CQJ-A30-15ALB-G

Supply Voltage

10-30VDC

Current consumption

≤1mA

Output Current

≤50mA

Output Voltage Drop

≤5

response frequency

≤150Hz

Repeatability

<1 percent

Output indicator

red LED

environmental temperature

-25°C-+75°C

Environmental humidity

35-95%RH

Shell material

All stainless steel

connection method

M12 Connector

protection class

IP67
