CLJ-SL18 Square Proximity Sensor CLJ-SL18 Square Proximity Sens...

● Inductive proximity sensors detect metal.

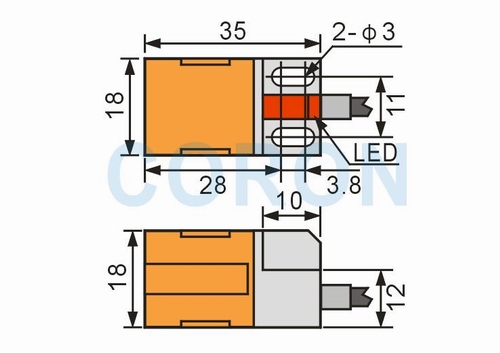

● Square □ 18 x 18 mm, plastic housing, 2 meter connection.

● Non-buried, detection distance 5mm.

●NPN output, PNP output.

●Adoption of a dedicated IC torealize excellent anti-interference performance.

● Red LED indicator shows the working status of thesensor.

● High detection accuracy and fast response time.

● With polarity protection and short-circuit protection.

● Long life and high reliability.

●Widely used in all kinds of machinery, automationequipment positioning, limit, detection and so on.


Online Consultation

Form

￡18×18

Installation form

Unburied

Detection distance

5mm

Setting distance

0-4mm

NPN 3-wire

NO

CLJ-SL18-5ANA

NC

CLJ-SL18-5ANB

N+C

 ------

NPN 3-wire

NO

CLJ-SL18-5APA

NC

CLJ-SL18-5APB

N+C

 ------

Supply voltage

10-30VDC

Current consumption

≤15mA

Output current

≤200mA

Output voltage drop

≤1.5V

Response frequency

≤500Hz

DC 2-wire

NO

CLJ-C18-5ALA

NC

CLJ-C18-5ALB

Supply voltage

 10-30VDC

Current consumption

≤1mA

Output current

≤50mA

Output voltage drop

≤5V

Response frequency

≤200Hz

Repeatability

<1%

Output indicator

Red LED

CLJ-SL18 Square Proximity Sensor ( 0 )
